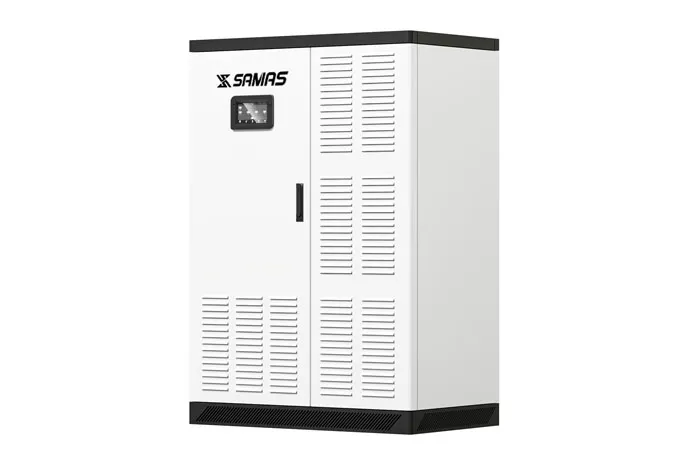

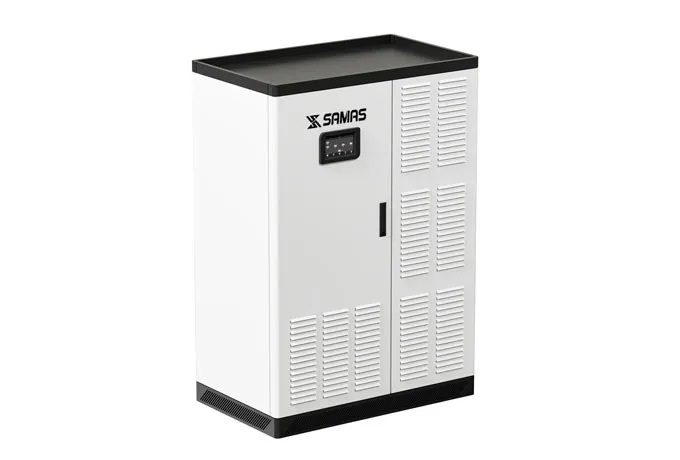

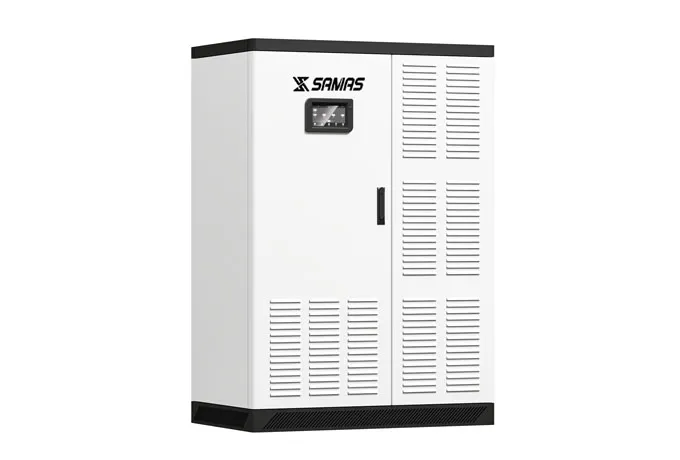

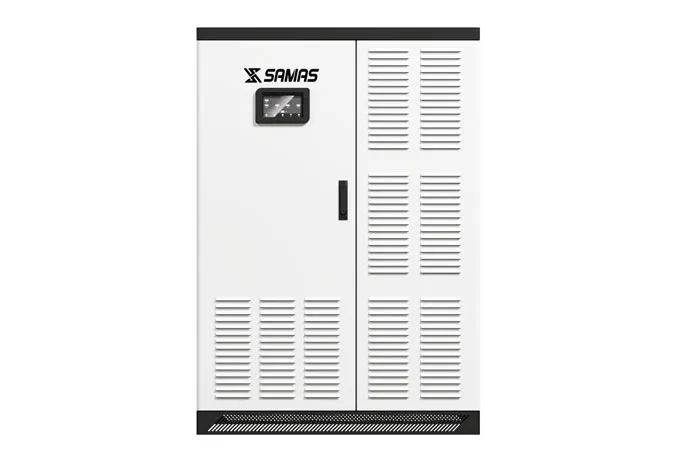

Main Features:
0ms switching No load dropout
Intelligent software and hardware protection mechanisms
Flexible setting of working modes
Supports multiple communication methods
High-precision and high-quality power supply
Support multiple energy management strategies
Flexible configuration of PV controllers
7-inch large touchscreen display

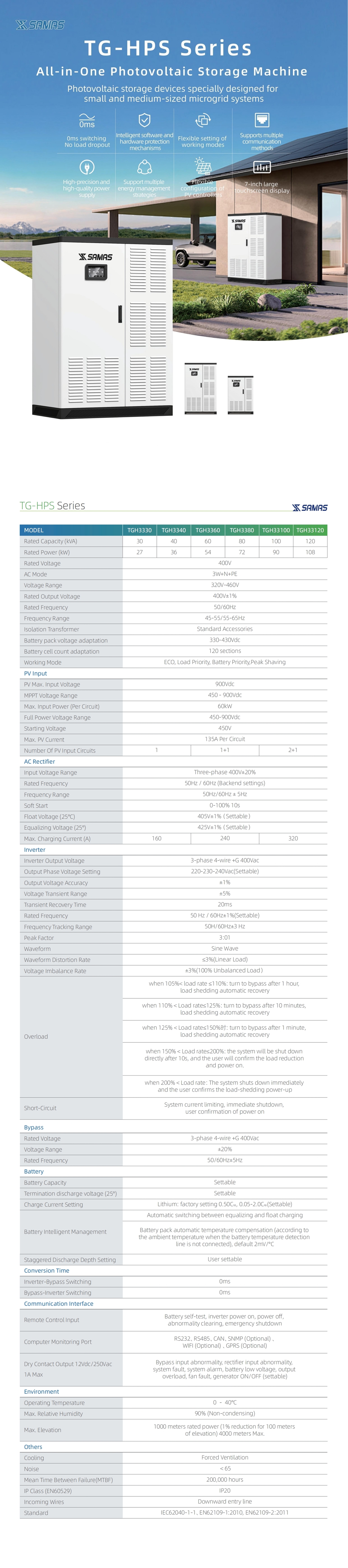

| TGH3330 | TGH3340 | TGH3360 | TGH3380 | TGH33100 | TGH33120 |
Rated Capacity (kVA) | 30 | 40 | 60 | 80 | 100 | 120 |
Rated Power (kW) | 27 | 36 | 54 | 72 | 90 | 108 |
Rated Voltage | 400V | |||||
AC Mode | 3W+N+PE | |||||
Voltage Range | 320V-460V | |||||
Rated Output Voltage | 400V±1% | |||||
Rated Frequency | 50/60Hz | |||||
Frequency Range | 45-55/55-65Hz | |||||
Isolation Transformer | Standard Accessories | |||||
Battery pack voltage adaptation | 330-430Vdc | |||||
Battery cell count adaptation | 120 sections | |||||
Working Mode | ECO, Load Priority, Battery Priority, Peak Shaving | |||||
| PV Input | ||||||
| PV Max. Input Voltage | 900Vdc | |||||
| MPPT Voltage Range | 450 - 900Vdc | |||||
| Max. Input Power (Per Circuit) | 60kW | |||||
| Full Power Voltage Range | 450-900Vdc | |||||
| Starting Voltage | 450V | |||||
| Max. PV Current | 135A Per Circuit | |||||
| Number Of PV Input Circuits | 1 | 1+1 | 2+1 | |||
| AC Rectifier | ||||||
| Input Voltage Range | Three-phase 400V±20% | |||||
| Rated Frequency | 50Hz / 60Hz (Backend settings) | |||||
| Frequency Range | 50Hz/60Hz ± 5Hz | |||||
| Soft Start | 0-100% 10s | |||||
| Float Voltage (25℃) | 405V±1% (Settable) | |||||
| Equalizing Voltage (25°) | 425V±1% (Settable) | |||||
| Max. Charging Current (A) | 160 | 240 | 320 | |||
| Inverter | ||||||
| Inverter Output Voltage | 3-phase 4-wire +G 400Vac | |||||
| Output Phase Voltage Setting | 220-230-240Vac(Settable) | |||||
| Output Voltage Accuracy | ±1% | |||||
| Voltage Transient Range | ±5% | |||||
| Transient Recovery Time | 20ms | |||||
| Rated Frequency | 50 Hz / 60Hz±1%(Settable) | |||||
| Frequency Tracking Range | 50H/60Hz±3 Hz | |||||
| Peak Factor | 3:01 | |||||
| Waveform | Sine Wave | |||||
| Waveform Distortion Rate | ≤3%(Linear Load) | |||||
| Voltage Imbalance Rate | ±3%(100% Unbalanced Load） | |||||
| Overload | when 105%< load rate ≤110%: turn to bypass after 1 hour, load shedding automatic recovery | |||||
when 110%＜Load rate≤125%: turn to bypass after 10 minutes, load shedding automatic recovery | ||||||
when 125%＜Load rate≤150%: turn to bypass after 1 minute, load shedding automatic recovery | ||||||
when 150%＜Load rate≤200%: the system will be shut down directly after 10s, and the user will confirm the load reduction and power on. | ||||||
when 200%＜Load rate: The system shuts down immediately and the user confirms the load-shedding power-up | ||||||
| Short-Circuit | System current limiting, immediate shutdown, user confirmation of power on | |||||
| Bypass | ||||||
| Rated Voltage | 3-phase 4-wire +G 400Vac | |||||
| Voltage Range | ±20% | |||||
| Rated Frequency | 50/60Hz±5Hz | |||||
| Battery | ||||||
| Battery Capacity | Settable | |||||
| Termination discharge voltage (25°) | Settable | |||||
| Charge Current Setting | Lithium: factory setting 0.50C10, 0.05-2.0C10 (Settable) | |||||
| Battery Intelligent Management | Automatic switching between equalizing and float charging | |||||
Battery pack automatic temperature compensation (according to the ambient temperature when the battery temperature detection line is not connected), default 2mV/°C | ||||||
| Staggered Discharge Depth Setting | User settable | |||||
| Conversion Time | ||||||
Inverter-Bypass Switching | 0ms | |||||
Bypass-Inverter Switching | 0ms | |||||
| Communication Interface | ||||||
| Remote Control Input | Battery self-test, inverter power on, power off, abnormality clearing, emergency shutdown | |||||
| Computer Monitoring Port | RS232、RS485、CAN、SNMP (Optional) 、WIFI (Optional) 、GPRS (Optional) | |||||
| Dry Contact Output 12Vdc/250Vac 1A Max | Bypass input abnormality, rectifier input abnormality, system fault, system alarm, battery low voltage, output overload, fan fault, generator ON/OFF (settable) | |||||
| Environment | ||||||
| Operating Temperature | 0 － 40℃ | |||||
| Max. Relative Humidity | 90% (Non-condensing) | |||||
| Max. Elevation | 1000 meters rated power (1% reduction for 100 meters of elevation) 4000 meters Max. | |||||
| Others | ||||||
| Cooling | Forced Ventilation | |||||
| Noise | ＜65 | |||||
| Mean Time Between Failure(MTBF) | 200,000 hours | |||||
| IP Class (EN60529) | IP20 | |||||
| Incoming Wires | Downward entry line | |||||
| Standard | IEC62040-1-1、EN62109-1:2010, EN62109-2:2011 | |||||
