Main Features:
High Efficiency
Transformer-less design, higher system efficiency.
Wide AC Grid voltage range.
Simple battery string. No circular current, saving battery capacity loss.
Safety & Reliability
Full function of heat management, fault detection and protection.
Inbuilt BMS, PCS, MPPT and EMS. Multiple levels of software & hardware protection.
Two level fire extinguisher system.
Flexible Application
Modular Design, flexible configuration, small footprint.
Power module supports "N+1" redundancy.
All in One design. Easy Installation & maintenance.
Full Functionality
Fast reaction of Active/Reactive power adjustment.
STS Inbuilt Supporting On grid/ off grid transfer without interruption.
Standard with EMS function. Peak saving, virtual enlargement, EPS, New Energy power absorption.

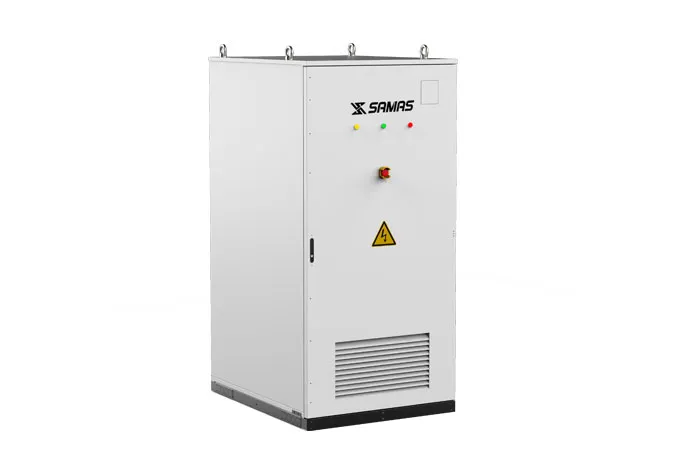

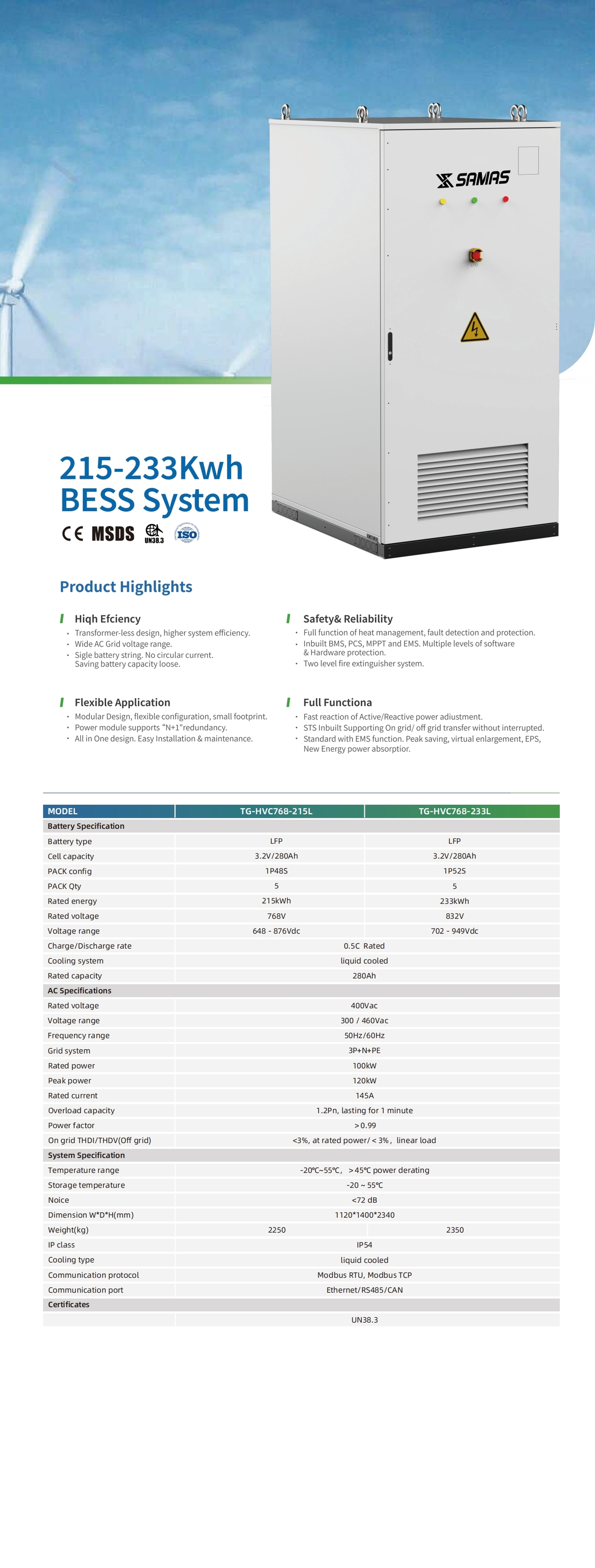

MODEL | TG-HVC768-215L | TG-HVC768-233L |
| Battery Specification | ||
| Battery type | LFP | LFP |
| Cell capacity | 3.2V/280Ah | 3.2V/280Ah |
| PACK config | 1P48S | 1P52S |
| PACK Qty | 5 | 5 |
| Rated energy | 215kWh | 233kWh |
| Rated voltage | 768V | 832V |
| Voltage range | 648 - 876Vdc | 702 - 949Vdc |
| Charge/Discharge rate | 0.5C Rated | |
| Cooling system | liquid cooled | |
| Rated capacity | 280Ah | |
| AC Specifications | ||
| Rated voltage | 400Vac | |
| Voltage range | 300 / 460Vac | |
| Frequency range | 50Hz/60Hz | |
| Grid system | 3P+N+PE | |
| Rated power | 100kW | |
| Peak power | 120kW | |
| Rated current | 145A | |
| Overload capacity | 1.2Pn, lasting for 1 minute | |
| Power factor | >0.99 | |
| On grid THDI/THDV(Off grid) | <3%, at rated power/< 3%, linear load | |
| System Specification | ||
| Temperature range | -20°C~55°C, >45°C power derating | |
| Storage temperature | -20 ~ 55°C | |
| Noise | <72 dB | |
| Dimension W*D*H(mm) | 1120*1400*2340 | |
| Weight(Kg) | 2250 | 2350 |
| IP class | IP54 | |
| Cooling type | liquid cooled | |
| Communication protocol | Modbus RTU, Modbus TCP | |
| Communication port | Ethernet/RS485/CAN | |
| Certificates | ||
| UN38.3 | ||
