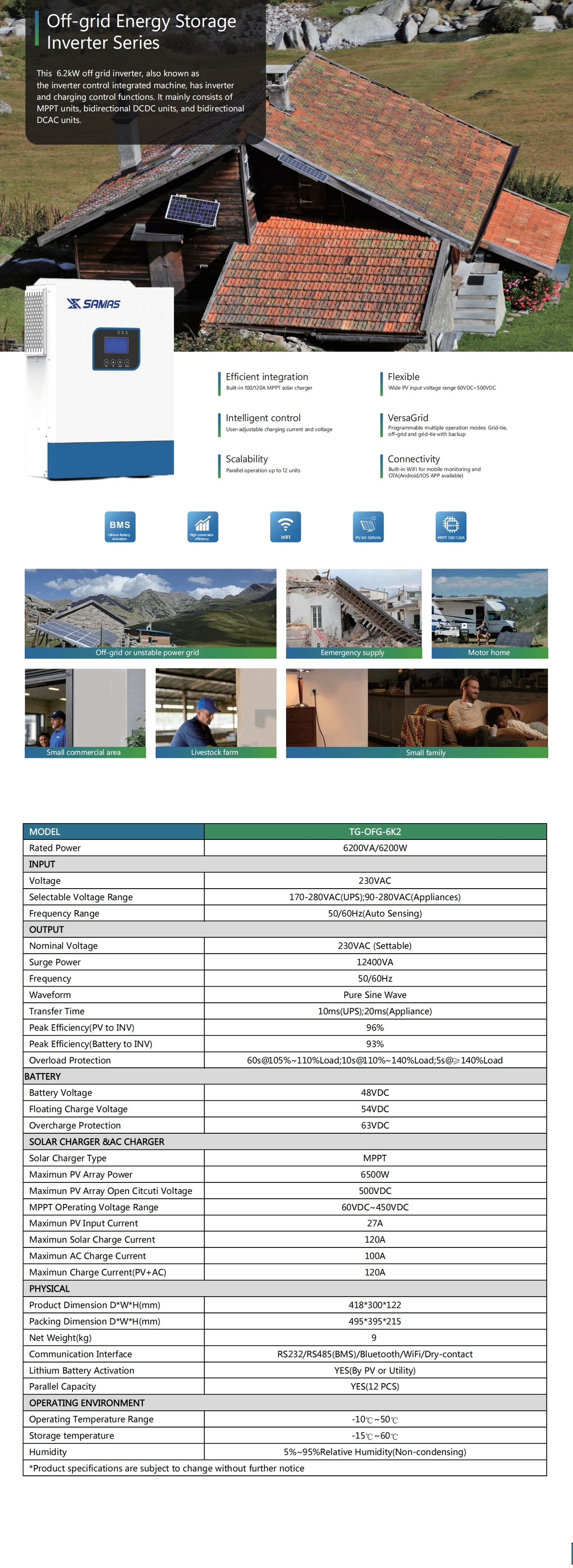

Main Features:
Efficient integration: Built-in 100/120A MPPT solar charger
Intelligent control: User-adjustable charging current and voltage
Scalability: Parallel operation up to 12 units
Flexible: Wide PV input voltage range 60VDC~500VDC
VersaGrid: Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Connectivity: Built-in WiFi for mobile monitoring and OTA for Android/iOS APP available
| MODEL | TG-OFG-6K2 |
| Rated Power | 6200VA/6200W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(UPS); 90-280VAC(Appliances) |
| Frequency Range | 50/60Hz(auto Sensing) |
| OUTPUT | |
| Nominal Voltage | 230VAC (Settable) |
| Surge Power | 12400VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms(UPS); 20ms(Appliance) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 60s@105%-110% Load; 10s@110%-140% Load; 5s@≥140% Load |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 6500W |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| MPPT Operating Voltage Range | 60VDC~450VDC |
| Maximum PV Input Current | 27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current(PV+AC) | 120A |
| PHYSICAL | |
| Product Dimension DWH(mm) | 418*300*122 |
| Packing Dimension DWH(mm) | 495*395*215 |
| Net Weight(kg) | 9 |
| Communication Interface | RS232/RS485(BMS)/Bluetooth/WiFi/Dry-contact |
| Lithium Battery Activation | YES(By PV or Utility) |
| Parallel Capacity | YES(12 PCS) |
| OPERATING ENVIRONMENT | |
| Operating Temperature Range | -10°C~50°C |
| Storage Temperature | -15°C~60°C |
| Humidity | 5%-95% Relative Humidity(Non-condensing) |
| *Product specifications are subject to change without further notice | |
